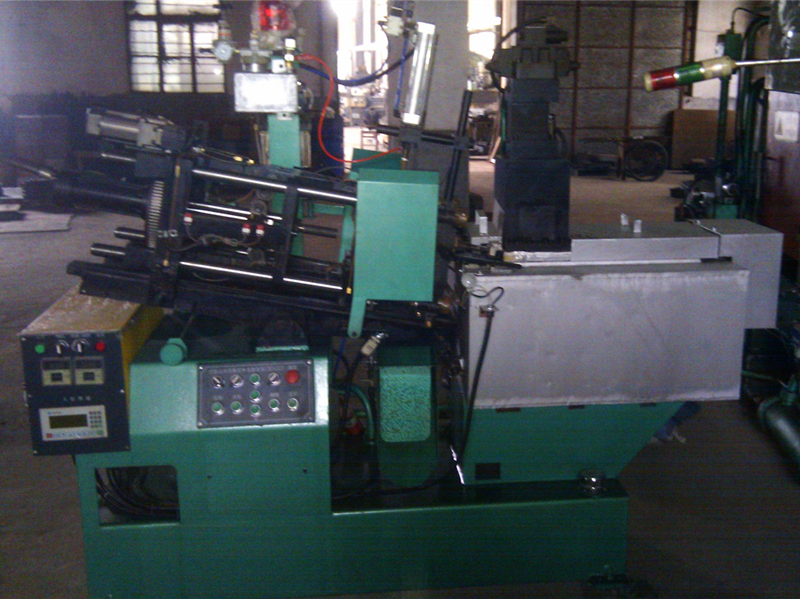

18T High Pressure Hot Chamber Die Casting Machine used to produce zinc alloy jewerly, precision electric parts etc. Machine operated with full automatic. Materials involve: Lead (PB) alloy, Zinc (Zamak) alloy, Tin alloy etc. Email: cnkylt@aliyun.com
| Tonnage: | |
|---|---|
| Material: | |
| Type: | |
| PLC: | |
| Original: | |
| Shipping Port: | |
| Lead time: |
- 18T
- HD
- 8454301000
18T High Pressure Hot Chamber Die Casting Machine has improved on the basis of other similar type machines. We adopts worldwide famous brands of electrical appliance and hydraulic component, high reliability, high efficiency of production, high automation. The zinc alloy, lead alloy and tin alloy which is manufactured by the machine has the good surface quality, and can be polishing, electrofacing, and spray lacquer. And it is widely used in manufacturing toy, lockset, fishing gear, hardware decorating parts, electrical and electronic casting, automobile part, watchcase, clothing metal accessory and so on.
18T High Pressure Hot Chamber Die Casting Machine Features:
Auto-mould height adjustment: ensure fast adjusting, stable clamping and high durability.
2. Adopt integrated injection cylinder, which has high efficiency, stability and safety.
3. Mold closing protective system can protect operator's security, and reduce mold damage probability.
4. The central automatic lubrication system has the function of regular and quantitative safety detection at the same time to ensure the normal lubrication of the mechanical system.
5. Control panel with easy operation and safe locking protection design.
6. Reliable and durable automatic sprayer assures fast and stable production.
7. The improved melting furnace adopts advanced design and material, more energy saving and durable.
8. Mold closing/opening adopts electronic fix detecting system, and its precision is higher.
9. The alarm information can be found conveniently and timely.
10. Injection operation, opening and locking mould design etc. can be set on the screen rapidly and accurately.
11. High-strength steel alloy tie bar with chromium plated for high wear resistance and long service life.
12. Thickened platen was made of excellent ductile cast iron with high rigidity, even stress and little distortion, which ensures the stability of die casting machine.
13. Diagonal five point toggle was made of ductile cast iron with high rigidity, high durability, and more stable mold opening and closing.
14. The heat treated parts of the injection system are made of high-quality hot processed steel.
18T High Pressure Hot Chamber Die Casting Machine Specification and Parameters:
Usage of high pressure hot chamber die casting machine:
High Pressure Hot chamber die casting machine widely used for low melting point alloys. Zinc/zamak die casting parts, lead alloy die casting parts, tin alloy die casting parts etc.
Mostly the machine always be used to produce zinc alloy die casting parts, the machine also named: zinc die casting machine, zinc injection machine.
Compare with cold chamber die casting machine, this machine is small. Its key function is injection work, so it also called: small die casting machine, small zinc injection machine, small high pressure inject machine.
High pressure hot chamber horizontal die casting machine details structures:
Small hot chamber machine contains a melting furnace pot, machine body & base, clamping mold mechanism, accumulator, hydraulic system etc. Now, we will show you the small hot chamber horizontal die casting machine details structures:

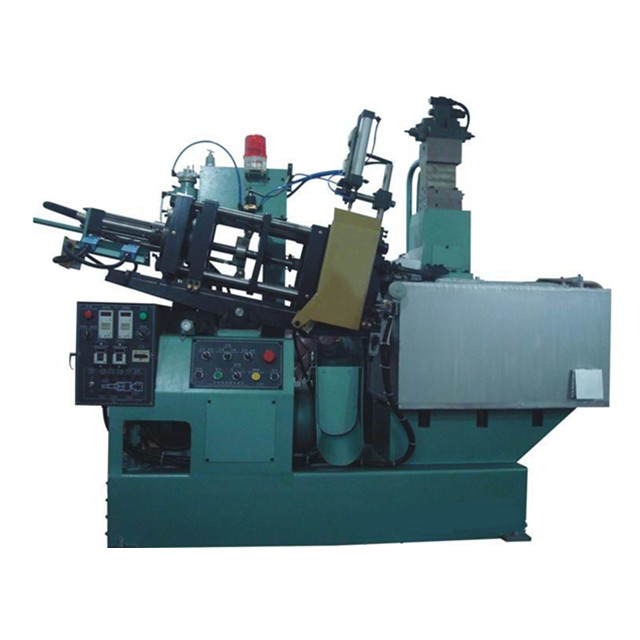

1. Front structure of hot chamber machine:

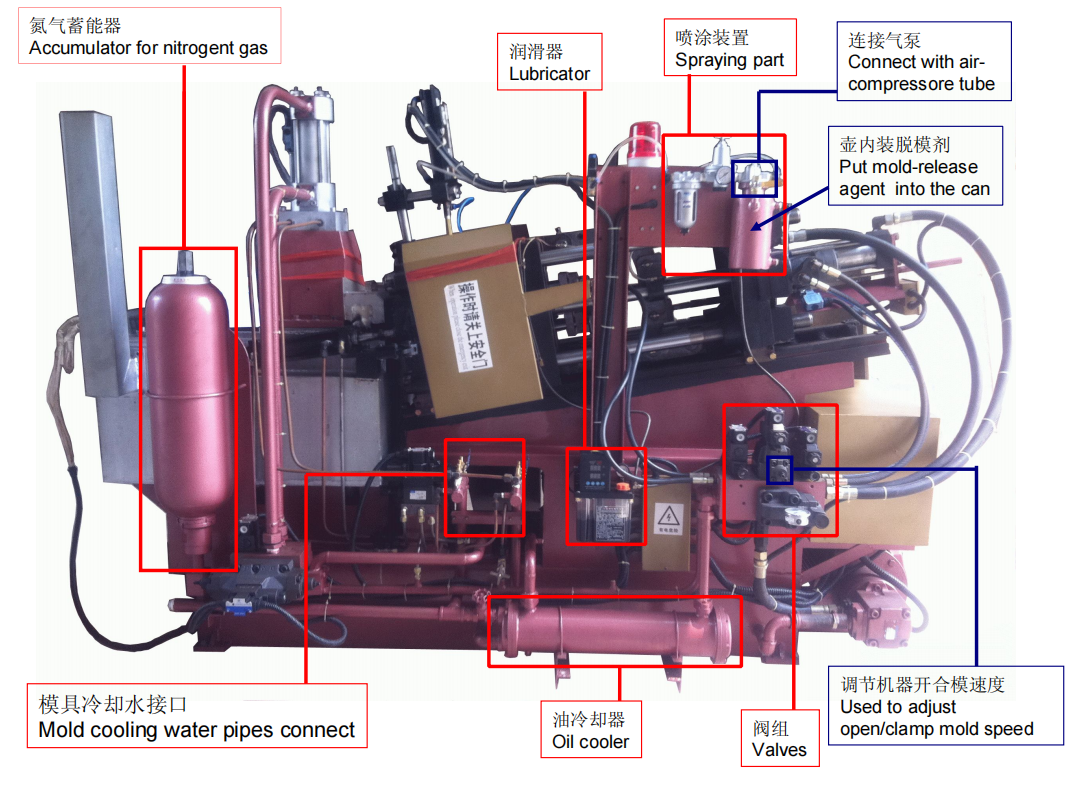

2. Back side of hot chamber pressure die cast machine:
3. Horizontal hot chamber die casting machine right side structure:
4. Hot chamber pressure injection machine left side structure:
The advantages of HD special melting pot goose-neck structure:
Special designed goose neck structure with pot, which keep alloy melting leverl same with injection nozzle. That reduce the air sapce of gooseneck to mold cavity. Finished die casting parts inside air holes are reduced sharply.
Pot material made from special stainless iron.
Molten metal alloy flow into hot chamber directly.
Gooseneck structure be cast together with pot.
Gooseneck structure connect with nozzle, which has a designed angle to keep molten metal level same with nozzle hole. That avoid many air be push into mold cavities.
Machine base is a hydraulic tank. It bears the furnace and machine body. Die casting machine body key structure is the clamping mechanism. The contains guide ways, mold platens, mold adjusting system etc.
Die casting machine pressure from the hydraulic station. Accumulator used to balance the machine pressure.
What is the high pressure hot chamber die casting working process?
1.Melting Furnace Pot
Electric heating tubes heat metal alloy to molten state. (If first time use the melting pot, no alloy cover the electric heating tubes, we need pour molten alloy to the pot or use burner to melt metal blocks in pot firstly. When metal alloy covers the heating tubes, machine electric heating method can be used. )
2. Hot Chamber Injection Process
1st. Die casting die is clamped and the injection plunger rises, opening the hot chamber hole, allowing molten metal flow into the chamber cylinder.
2nd.The plunger seals the hot chamber hole, pushing the molten alloy through the gooseneck and nozzle into the mold cavities where it is held under pressure until metal alloy solidifies.
3rd.After the metal has solidified in the cavity, the plunger is withdrawn.
4th. Die casting machine movable platen move back and mold opens. Die casting parts be eject out from movable die half by ejector pins.
5th.Lubricating and cooling mold cavity. Die casting mold temperature is about 150℃.
6th>Mold closes and to start the next injection cycle.
More about hot chamber die cast process please view video:
1. Full auto horizontal die casting machine video https://youtu.be/k2nq4q4CYao
2. 12T vertical die casting machine video https://youtu.be/6yC_AQaJMTU
3. 20T vertical die casting machine fishing bait making https://youtu.be/SliYJiJdz5I
4. 20T zinc end wire casting machine L-type machine https://youtu.be/0bVZTJE6zT4
5. 20T vertical wire zinc end die casting machine (wires position locking mechanism-wire retainer)
About the cold chamber die casting process please view video:
1. Manual cold chamber die casting machine video:
https://www.youtube.com/shorts/npYbgva3NK8
2. Auto cold chamber die casting machine video:
https://www.youtube.com/watch?v=LCafa6yLESc
About small 12T horizontal die casting machine price, or die casting mould, please feel free to email us: cnkylt@aliyun.com We will choose suitable machine types, suggestions of mould design, provide free die casting samples.
