Vertical die casting machine used cast Zn( Zinc/Zamak), Pb(Lead), Sn(Tin) alloy parts. As the vertical design, easy for opeator to set insert part. Such as: brake wire/cable, fishing sinker (Luya), bolt terminal of lead acid battery, battery terminal clamp connector pile head etc. More information, please email: cnkylt@aliyun.com
Hot Chamber Vertical die casting machines types: 12T, 20T, 30T. They are can be used cast Zinc/Zamak Alloy, Lead Alloy die casting parts, and those parts have inserts must be cast together with Zinc or Lead alloy.
Vertical die casting machines structure consists of machine body, mold clamping mechanism, injection system, cooling system, melting furance, electric system etc.
Cast machine adopts hydraulic drive, electric operation, and has manual and automatic operation. Melting furance is heated by electrical heated tube, so its operation is easy, and it has big adjustment range and wide application scope. The brand of hydraulic valve, time relay, general relay, AC contactor, microswitch of this machine is domestic and oversea famous, so it is running stable and performing excellence. It runs efficiently after adjustment. This machine is suitable for zinc alloy, lead alloy and tin alloy casting of hardware, electrical appliance, tool industry etc.
What are the vertical hot chamber die casting machines used for?
Vertical hot chamber die casting machine normally used to produce zinc or lead alloy parts with have insert parts which must be cast together. Such as brake wires of car and bike, fishing sinker, lead metal fishing lure, lead Luya bait, lead acid battery terminal with bolt etc.
Brake wire/cable making
To cast zinc terminal with wirerope. The manufacturing process need: die casting machine, die casting die, wireropes. Operator manual set wireropes on mold cavities. Normally 12T machine one time set 6 wireropes, 20T can set 8 wireropes.
The machine can be used to cast bike wire cable, motorcycle brake wire, car brake cable or wirerope with zinc end terminal.
Video for brake wire zinc end die casting machine test:
https://www.youtube.com/watch?v=cBZXtBaEbAk
Lead alloy metal fishing sinker, lead metal fishing lure, lead Luya bait making
As ring, hook and other metal piece need be cast together with lead alloy to produce fishing parts. Vertical lead alloy injection machines are used, with the horizontal operating platform, worker can set metal insert to mold cavties easily and conveniently. The manufacturing of small lead (Pb.) alloy fishing parts use 12T vertical type, for big Luya bait need use 20T vertical type.
Video for vertical die casting machine fishing bait making
Lead acid battery terminal with bolt, copper nut manufacturing
Vertical die casting machine can set bolts, nut, copper insert in mold cavites easily. In lead acid battery terminal making process, those metal insert parts can be set in good positions.
Vertical hot chamber die casting machine specification:
12T high pressure vertical hot chamber die casting machine parameters:
20T high pressure vertical hot chamber die casting machine parameters:
30T pressure vertical hot chamber metal alloy injection machine parameters:
Vertical die casting machine types:
There are 3types vertical die casting machines to meet customers' demand: L type, T type, S type.
1. L type vertical die casting machine
This vertical machine melting furance pot is at right angle with clamping mechanism and control panel. The whole machine structure view like letter "L". That is the reason we call it as L type machine.
Vertical L type machine is standard structure. We have two kinds tonnages: 12T, 20T.
2. T type high pressure hot chamber vertical die casting machine
Vertical T type hot chamber die casting machine developed on the standard horizontal hot chamber die casting machine. T type machine body and melting furance are same the with horizontal machine. Machine clamping mechanism is at right angle with machine body. The whole machine structure like inverted letter "T", that is the reason we call this machine is T type.
Our 200kn T type vertical hot chamber die casting machine is speical ordered by a world famous brake wire manufacturer. They need auto robots in front and back side of the machine. T type machine has more space to set wire cutting robot in machine front. Back side has enough space to set pick-up and stamping robots. Metal alloy be melted in the machine right side furance by electric tubes. Nozzle injects molten alloy from bottom of fixed mold platen to mold cavities at right angle.
Video for zinc end wire casting machine L-type machine
Video for vertical wire zinc end die casting machine S-type (wires position locking mechanism-wire retainer)

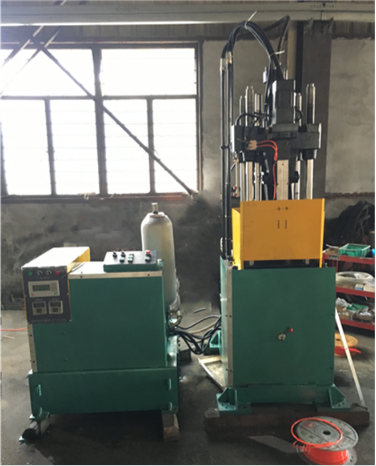

3. S type vertical pressure hot chamber inject die casting machine
300kn (30T) vertical die casting machine is separeted two parts. One part is melting furance and clamping machanism. Another part is electric control system, accumulator, hydraulic station etc.
Vertical die casting machine maintenance schedule:
Vertical die casting machine free spare parts list:
About Vertical hot chamber die casting machine price, or die casting mould, please feel free to email us: cnkylt@aliyun.com We will choose suitable machine types, suggestions of mould design, provide free die casting samples.
