sell 268T High Pressure Die Casting Machine



268T High Pressure Die Casting Machine suitable produce Aluminum, Zinc, Copper die cast parts. Good quality and stable function, Quality guarante eperiod is 12 months after machine put in to operation. Email: cnkylt@aliyun.com

268T High Pressure Die Casting Machine Specification (LZ268T)

No.	ITEM	UNIT	LZ268
1	Clamping Force	KN	2680
2	Inner space between tie bars(H*V)	mm	540×540
3	Die Stroke	mm	450
4	Die Thickness	mm	250~650
5	Ejection Stroke	mm	110
6	Ejection Force	KN	150
7	Injeciton Force	KN	133~280
8	Injection position(center is "0",down is "-")	mm	0,-160
9	Dia. of shot sleeve	mm	50,60,70
10	Dia.of Injection chamber flange	mm	110f7
11	Over height of flange	mm	12-0.05
12	Dosage of fluid metal pershot	kg	3.2(Al). 2.3(Mg)
13	Projected area	cm	196~800
14	Injection pressure	Mpa	35~143
15	Dry cycle	s	10
16	Oil tank capacity	L	750
17	Motor power	KW	18.5
18	Machine sizes(L*W*H)	M	6.4×1.6×2.8

(Remark: 1.The die casting machine supplier keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. 2. Servo die casting machine can be choosed to save energy and cost. )

268T High Pressure Die Casting Machine Molding Plate Specification:

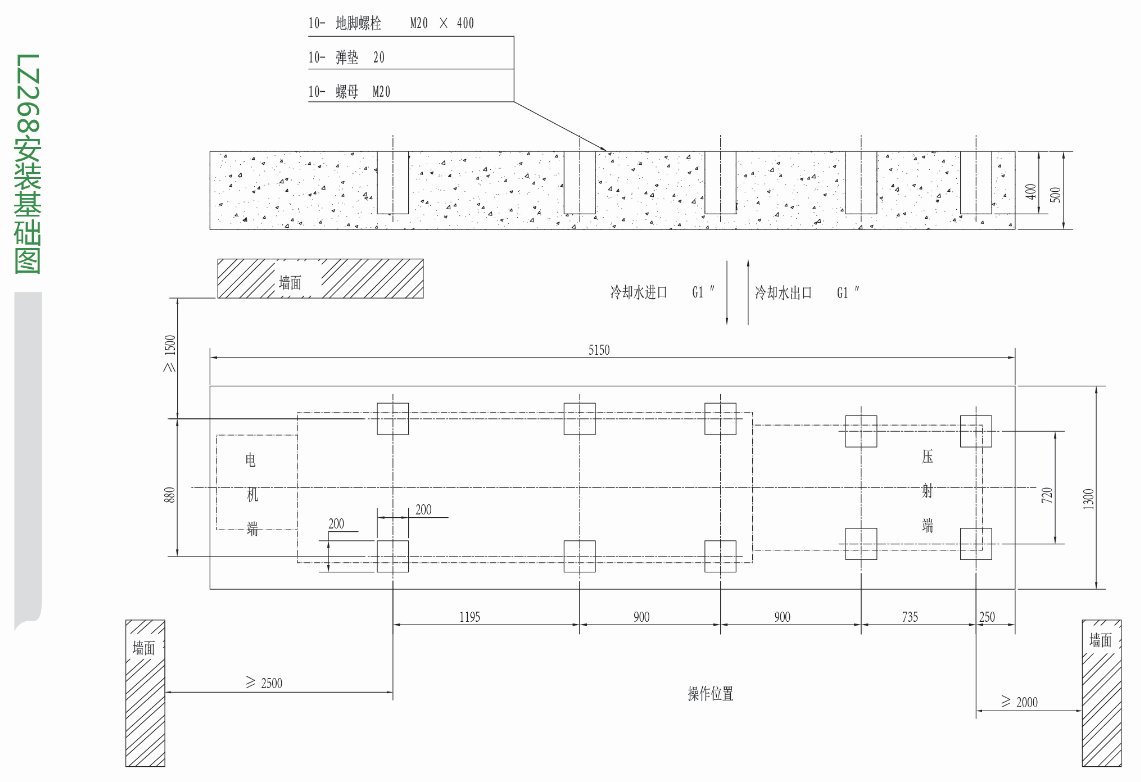

268T High Pressure Die Casting Machine Cement Ground Specification:

How to choose suitable cold chamber die casting machine?

1.As per different die casting metal alloy, die caster types: aluminum die casting machine, zinc (zamak) die casting machine, magneisum die casting machine, copper (brass) die casting machine.

- Aluminum die casting machine used to produce aluminum alloy die casting parts. Use a gas or electric melting furance can start the production. Die casting mould normally is H13 mold steel.

- Zinc/Zamak die casting machine, in cold chamber types, it used to produce big zinc alloy die casting parts. (For small die casting parts, such as zipper slider, jewelry, electronic part, hot chamber die casting machine is more suitable.) Same as Aluminum die casting, just has an extra melting pot can start produce zamak die casting parts.

- Magnesium die casting machine. Magnesium alloy characters strong, light weight, easy for machining. It is more popular those years. To produce magnesium die casting part, specail ordered magnesium die casting machine with a magneisum alloy melting furance must be used. The furance connect with protect gas, avoid buring in melting process, quantitative feeding magnesium alloy to pressure machine cold chamber.

2. As per die casting machine tonnage, it can be classifed as: small die casting machine, large scale die casting mahcine.

Small die casting machine most is hot chamber high pressure injection machine. It has horizontal type and vertical type.

Large scale die casting machine normally is cold chamber pressure die-cast machine. Most is horizontal type.

---

More information about 268T High Pressure Die Casting Machine cost and Service, Please email us: cnkylt@aliyun.com
