sell Aluminum alloy Die Casting Machine



Aluminum die casting machine for the manufacturing of automotive parts, hardware, jewelry, electric/pneumatic tools parts, cooker/kitchen ware, lamp parts etc. Email: cnkylt@aliyun.com

Materials: Aluminum alloy

Tonnages: 160-2000T

Mold service: Yes, Free Samples allowed

Type: Horizontal Cold Chamber

PLC: PLC touch screen

Working period: 30-40days

Original: China

Aluminum die casting machine widely used to produce cast aluminum parts for applications in various end-user sectors, such as Household Electric Appliances, Kitchen appliances, automotive, agriculture machinery etc.

High pressure aluminum alloy die casting machine accounted for about 70% of the aluminum die casting machinery market share.

Bühler, Toshiba, Dynacast, Oskar , Idra Group are the world famous top five aluminium die casting machinery manufacturers.

Types of die casting machine:

Normally there are 2kinds die casting machines: Horizontal type, Vertical type

1. Horizontal die casting machine

Horizontal die casting machine has cold chamber and hot chamber version.

Aluminum pressure die casting machine is horizontal cold chamber type. For big scale and heavy weight zinc alloy die cast parts also use horizontal cold chamber die casting machine.

Horizontal hot chamber die casting machine is used to cast zinc, lead, tin alloy parts.

1. Vertical die casting machine

Vertical die casting machine most is to cast low melting point metal alloy, such as zinc, lead, tin alloys. The die cast parts features, which have insert parts to cast with alloy together. And Vertical die cast machine is easy for set insert parts in mold cavities.

Aluminum die casting machines Tonnages:

LZ die-casting machinery is one Horizontal cold chamber pressure die casting machine manufacturer from china. We have 150T, 160T, 200T, 280T, 300T, 350T, 400T, 550T, 700T, 800T, 1100T. 1300T, 2000T for sale.

Aluminum die casting machines usage:

Cold chamber Die Casting Machines suitable for Aluminum alloy, Zinc alloy, Magnesium alloy, Copper alloy and Lead alloy casting. All those metal alloys be cast with high pressure. Molten metal be forced into mold cavities through cold chamber by plunger.

Aluminum die casting process:

There are two kinds aluminum alloy die casting working process: Manual, Automatic.

1.Manual operation method:

Aluminum die casting machinery production line main consist two sections: horizontal cold chamber die-casting machine, aluminum melting furnace. With a die casting mould, the manual aluminum die casting process is established.

Video of manual die casting method:

https://youtu.be/p4yfwbCPTgU

2.Automatic operation method:

Automatic aluminum die casting process consists: Aluminum melting furnace, Metal ladling machine, Aluminum die casting machine, Spraying machine, die casting parts pick-up machine.

Melting furnace heats by electric or gas, ladling machine ladles molten aluminum alloy from furnace to die casting machine cold chamber. Injection mechanism shot liquid aluminum alloy into mold cavities. Mold open, solid aluminum die cast parts be ejected out from mold cavities. Die casting parts pick-up machine take out the metal parts. Sprayer cools and lubricates the mold cavity.

Video of Aluminum automatic die casting working process:

https://www.youtube.com/shorts/npYbgva3NK8

Aluminum die casting machine price

Aluminum die casting machine price or cost depends on die casting manufacturers capital budget and demand. Small tonnage die casting machine and manual die casting process are cheap.

Aluminum die casting machine tonnages and specifications:

1. LZ150~268T Main specifications and parameters.

No.	ITEM	UNIT	LZ150/160	LZ180	LZ200	LZ268
1	Clamping Force	KN	1500/1600	1800	2000	2680
2	Inner space between tie bars (H*V)	mm	440×440	480×480	490×490	540×540
3	Die Stroke	mm	340	380	380	450
4	Die Thickness	mm	200~550	200~550	200~550	250~650
5	Ejection Stroke	mm	80	80	80	110
6	Ejection Force	KN	100	110	110	150
7	Injeciton Force	KN	110~190	105~230	105~236	133~280
8	Injection position (center is "0",down is "-")	mm	0,-70,-140	0,-140	0,-140	0,-160
9	Dia. of shot sleeve	mm	40,50,60	50,60,70	50,60,70	50,60,70
10	Dia.of Injection chamber flange	mm	110	110f7	110f7	110f7
11	Over height of flange	mm	10-0.05	10-0.05	10-0.05	12-0.05
12	Dosage of fluid metal pershot	kg	1.8	2.5	2.5	3.2(Al). 2.3(Mg)
13	Projected area	cm	105~550	171~666	172~660	196~800
14	Injection pressure	Mpa	36~149	27.3~117	28~118	35~143
15	Dry cycle	s	7	7	7	10
16	Oil tank capacity	L	450	550	650	750
17	Motor power	KW	11	11	15	18.5
18	Machine sizes (L*W*H)	M	5.1×1.2×2.2	5.7×1.3×2.4	5.8×1.25×2.4	6.4×1.6×2.8

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

2. LZ300~550T Main specifications and parameters.

No.	ITEM	UNIT	LZ300	LZ350	LZ400	LZ550
1	Clamping Force	KN	3000	3500	4000	5500
2	Inner space between tie bars (H*V)	mm	580×580	600×600	630×630	750×750
3	Die Stroke	mm	450	560	580	580
4	Die Thickness	mm	250~650	250~700	300~800	350~850
5	Ejection Stroke	mm	110	145	145	150
6	Ejection Force	KN	150	170	190	266
7	Injeciton Force	KN	133~300	150~360	160~400	200~520
8	Injection position (center is "0",down is "-")	mm	0,-160	0,-160	0,-175	0,-220
9	Dia. of shot sleeve	mm	50,60,70	60,70,80	60,70,80	70,80,90
10	Dia.of Injection chamber flange	mm	110f7	110f7	130	130f7
11	Over height of flange	mm	12-0.05	12-0.05	15-0.05	15-0.05
12	Dosage of fluid metal pershot	kg	3.2(Al.) 2.3(Mg.)	4.2(Al.) 3.0(Mg.)	5(Al.)	6(Al). 4.3(Mg)
13	Projected area	cm	196~800	275~1167	283~1258	407~1749
14	Injection pressure	Mpa	35~143	30~127	35~142	31.5~135
15	Dry cycle	s	10	10	10	13
16	Oil tank capacity	L	750	800	800	1100
17	Motor power	KW	18.5	22	22	30
18	Machine sizes (L*W*H)	M	6.4×1.6×2.8	6.8×1.7×2.8	7.5×1.9×3.0	8.0×2.0×3.8

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

3.LZ700~1300T Main specifications and parameters.

No.	ITEM	UNIT	LZ700	LZ850	LZ1100	LZ1300
1	Clamping Force	KN	7000	8500	11000	13000
2	Inner space between tie bars (H*V)	mm	830×830	920×920	1030×1030	1100×1100
3	Die Stroke	mm	820	900	950	850
4	Die Thickness	mm	350~900	400~1000	450~1150	550~1200
5	Ejection Stroke	mm	200	240	190	200
6	Ejection Force	KN	316	400	500	570
7	Injeciton Force	KN	235~680	280~750	900	440~1100
8	Injection position (center is "0",down is "-")	mm	0,-250	0,-250	0,-150,-300	0,-320
9	Dia. of shot sleeve	mm	80,60,100	80,60,100， 110，120	90,100,110，120,130	100,110,120, 130,140
10	Dia.of Injection chamber flange	mm	165f7	180f7	240f7	130f7
11	Over height of flange	mm	15-0.05	20-0.05	20-0.05	25-0.05
12	Dosage of fluid metal pershot	kg	12.4(Al.)	16(Al.)	21.1(Al.)	26(Al).
13	Projected area	cm	518~972	570~3400	711~3166	928.6~4545
14	Injection pressure	Mpa	30~135.4	68~149	30~133.6	28.6~140
15	Dry cycle	s	13	14	14	19
16	Oil tank capacity	L	1200	1600	1600	2200
17	Motor power	KW	37	45	30*2	37*2
18	Machine sizes (L*W*H)	M	8.6×2×3.3	10.5×2.4×3.4	9.1×2.2×3.3	12×2.8×4.5

(Remark:The company keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then.)

Aluminum Cold Chamber Die Casting Machine Catalog & Brochure download:

1. PDF TYPE:

   LZ150~LZ2000 LZ150LZ2000 cold chabmer die casting machine specifications and parameters.pdf

2. JPG TYPE:

   LZ150~LZ550 LZ150LZ550 cold chabmer die casting machine specifications and parameters.jpg

   LZ700~LZ2000 LZ700LZ2000 cold chabmer die casting machine specifications and parameters.jpg

3. More die casting machine catalog, images, photos or die casting videos, pls. email us: cnkylt@aliyun.com

4. The information of die casting machine for sale and die casting machine price, pls. email us: cnkylt@aliyun.com

Aluminum die casting machine warranty and services:

1.Pre-sale Service

By providing customers with pre-sales services of investment budget, plant planning and other forms, customers' planningis reasonable, standardized and cost saving.

• Investment budget die casting machine selection and auxiliary equipment matching and budget

• Plant planning: provide installation size of equipment foundation, equipment layout, workshop ventilation, exhaust, watertransportation, wiring, lifting equipment design services.

• Provide information of various casting auxiliary equipment.



  2.After-sale Service

• Provide FREE standard spare parts together with machine.

• Arrange engineers to your factory to install and adjust machines. Traning the worker to operate the machine.

• Any questions be replied by email, video, photos within 24hr.

• Our engineer can guide your operater to work and adjust machine by video on line.

• Quality guarantee period: 12 months after machine put into operation.

• If the equipment fails during the guarantee peirod, the manufacturer shall repair and replace accessories free of charge.

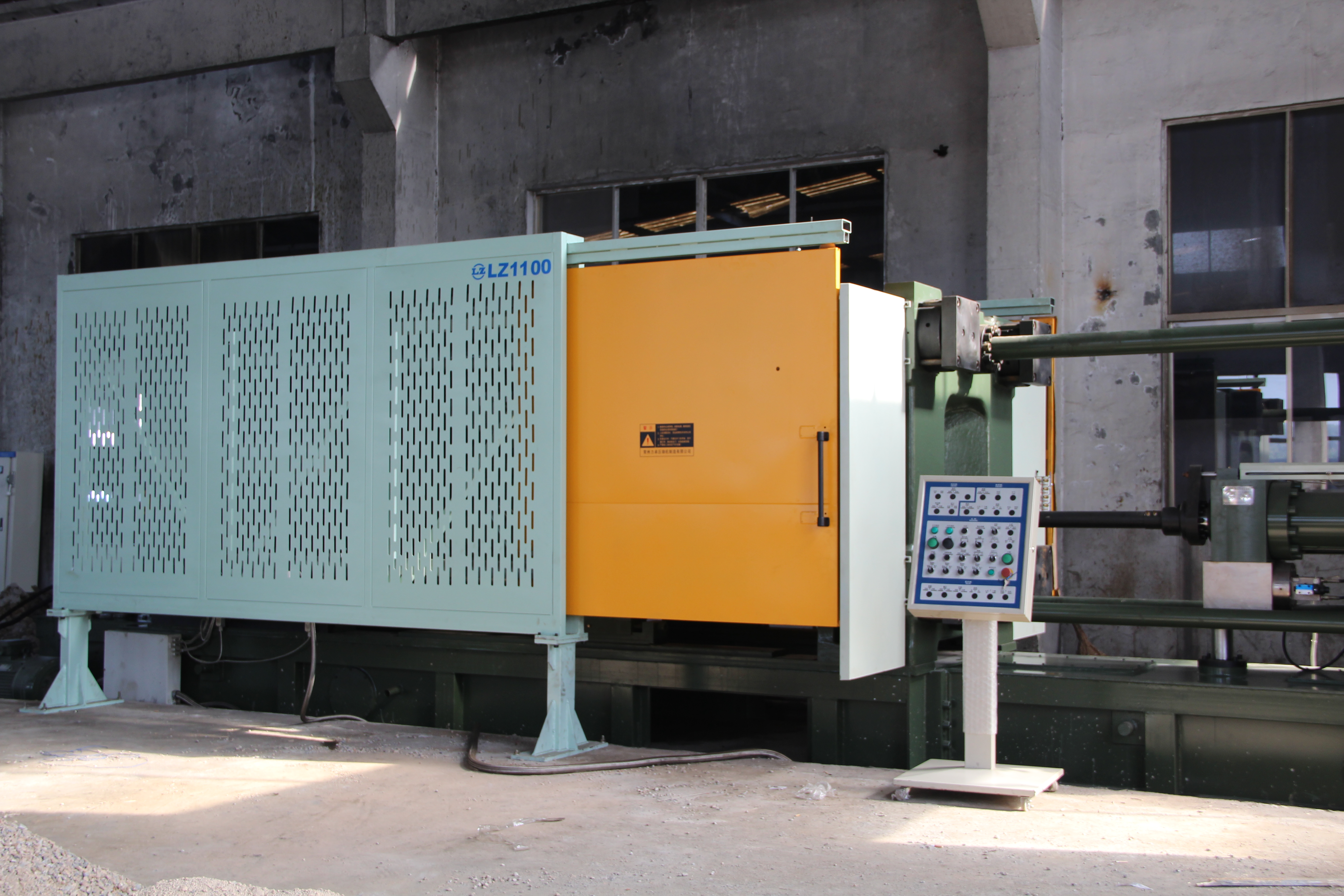

  (Photo shows LZ 1100 cold chamber pressure casting machine with after sale service: assembly and running test.)



  3.Used die casting machines

• Used cold chamber die casting machines repairment (About used aluminum die casting machine price & cost for maintain, please contact with: cnkylt@aliyun.com )

• Old high pressure die casting equipment improvement

  (Used Toshiba die casting machine have a complete overhaul in our factory. Photo show the injection molding structure of a used Toshiba aluminum die caster. )

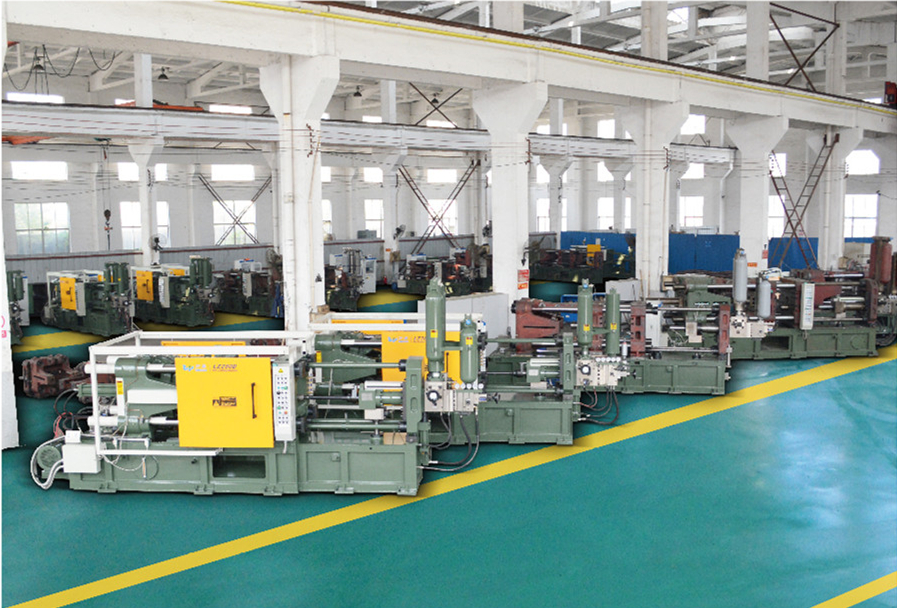

(You can found cold chamber die casting machine, aluminum die cast machine, die casting machine working process in our factory. Or visit our die casting machine clients.)

Choose The Perfect aluminium casting machine, please send us your aluminum project drawings or samples. Our engineer will choose suitable machine types and provide suggestions for your item. Our service Email:cnkylt@aliyun.com
