SELL LZ 350 Ton Cold Chamber Die Cast Machine



LZ 350 Ton Cold Chamber Die Cast Machine has high productivity, adjustable injection positions suitable for more molds. Die casting mold life long, aluminum alloy dies life about 30,000 to 50,000 injection times. Manual and Automatic operation is allowed. Email: cnkylt@aliyun.com

DC 3500KN Cold Chamber Die Cast Machine Specification (LZ350T)

No.	ITEM	UNIT	LZ350
1	Clamping Force	KN	3500
2	Inner space between tie bars(H*V)	mm	600×600
3	Die Stroke	mm	560
4	Die Thickness	mm	250~700
5	Ejection Stroke	mm	145
6	Ejection Force	KN	170
7	Injeciton Force	KN	150~360
8	Injection position(center is "0",down is "-")	mm	0,-160
9	Dia. of shot sleeve	mm	60,70,80
10	Dia.of Injection chamber flange	mm	110f7
11	Over height of flange	mm	12-0.05
12	Dosage of fluid metal pershot	kg	4.2(Al.) 3.0(Mg.)
13	Projected area	cm	275~1167
14	Injection pressure	Mpa	30~127
15	Dry cycle	s	10
16	Oil tank capacity	L	800
17	Motor power	KW	22
18	Machine sizes(L*W*H)	M	6.8×1.7×2.8

(Remark: 1.The die casting machine supplier keeps the right to revise above parameters, If there is any alterations, advance notice won't be given then. 2. Servo die casting machine can be choosed to save energy and cost. )

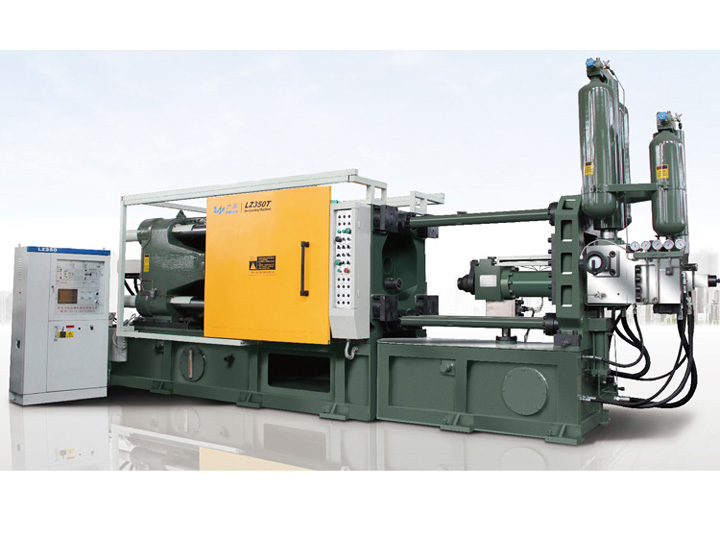

350T die casting machine image

350T DIE CASTING MACHINE DRAWING:

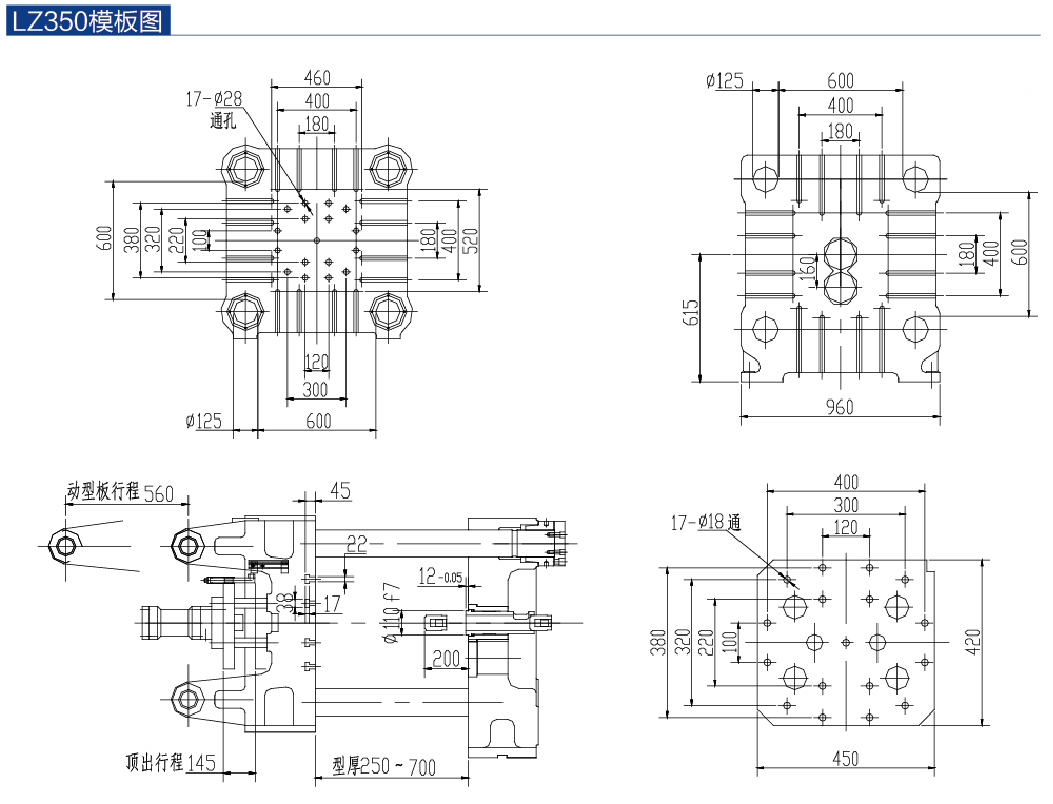

3500KN Cold Chamber Die Cast Machine Molding Plate Specification:

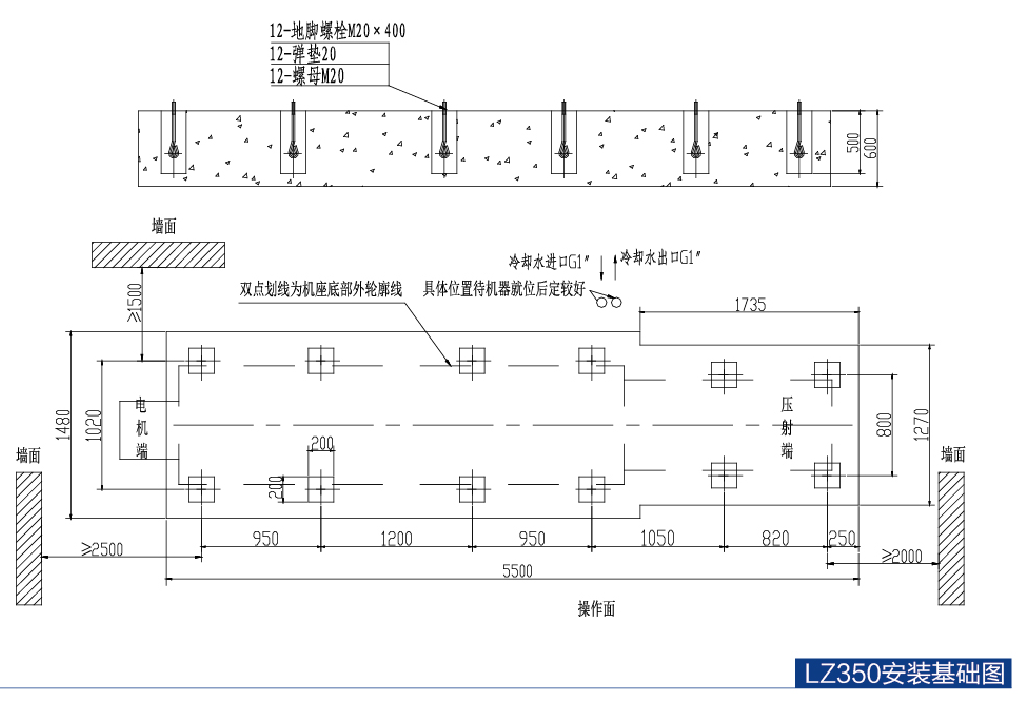

3500KN Cold Chamber Die Cast Machine Cement Ground Specification:

---

HOW DOES DIE CASTING WORK?

Manual Operation and Full Auto die casting work principle is ladling molten metal from die casting machine electric furnace to cast machine cold chamber. Next, plunging system in cold chamber die casting machine push liquid alloy into pressure die to got die cast parts.

Manual die casting process is operated by worker, Automatic die casting process is operated by auxiliary machines to instead of worker.

Cold chamber die casting machine PLC control used to adjust pressure, injection force etc key mechanism parts work. In automatic process, PLC connect with other auxiliary machines, control all machines work under program.

Full automatic aluminum cold chamber die casting unit working process video:

Youtube: https://youtu.be/npYbgva3NK8

---

What is the Cold chamber die casting machine process?

1. In manual working process: die casting opeartor pour molten aluminum alloy from furance to cold chamber, then casting machine inject metal to die tool to get the die casting parts.



2. In full automatic working process: Die casting machine PLC control the whole process. Automatic ladler pour molten aluminum metal alloy from melting pot to die casting machine cold chamber. Then, be inject to mold cavities to got die-cast parts. Auto extractor pick-up casting part from die tool, put them on conveyor. The auto sprayer cooling and lubricating the mold cavity. And, to start then next die casting process.



---

Application of Cold Chamber Die Casting Mahine:

• Automotive Die Casting Parts



• Kitchen and Toilet Appliances Die Casting Parts



• Lamps Die Casting Parts



• Electric Cars and Metal Hardware Die Casting Parts



• Tel-Communication Die Casting Parts



• Garden Machinery and Power Tools Die Casting Parts



• Other Die Casting Parts



  ---

  Servo driven die casting machine

Servo driven system is an advisable choice for die casting machine factory. It features:

1. Energy saving

2. Rapid response and improved efficiency

3. Stable pressure and precision

4. High repetition accuracy

5. High speed and large lifting flow

6. Connection mode to improve heat dissipation performance



   ---

   More information about 3500KN Cold Chamber Die Cast Machine Service, Please email us: cnkylt@aliyun.com
